Mechanical seal system SPX-325

A complete and fully functional Plan 32 system for arrangement 1 wet single seals (or the wet inner seal of an arrangement 2 or 3 dual seal)  in accordance with API 682 or ISO 21049 latest edition.

Standard configuration

Design ASME VIII, div. 1/not stamped and/or the European legislation (CE) such as PED 2014/68/EU and the ATEX 2014/34/EU – Zone 2 II/A T1-T3.

Suitable for general oil/water service – Non-hazardous.

Design 40 barg @ -15/+90°C / ANSI 300#-sch.40s. Wetted parts AISI 316(L) .

In- and outlet connections ANSI 1/2″ 300# RF smf,

 Engineering units: SI units, Bar/°C.
NDE: Visual-/hydrostatic and leaktesting.
Surface preparation : Flopac std 3 layer epoxy system.



Available at request:

9

Designs tailored to meet your specific requirements.

9

High pressure designs (ANSI 600# / 1500#) for static designs up to 200 barg.

9

High temperature designs

9

Extended NDE packages to include inspections such as X-ray, LPE and P(A)MI.

9

Refer to the section ‘options’ below.

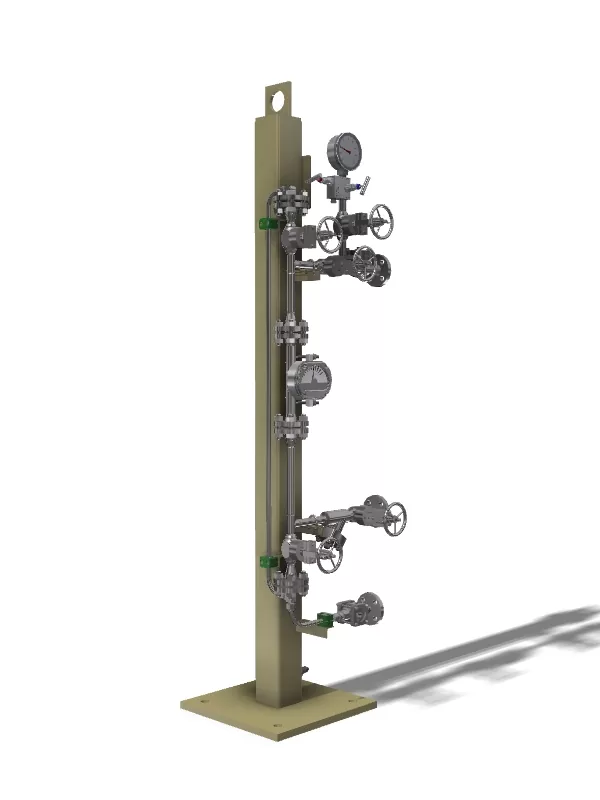

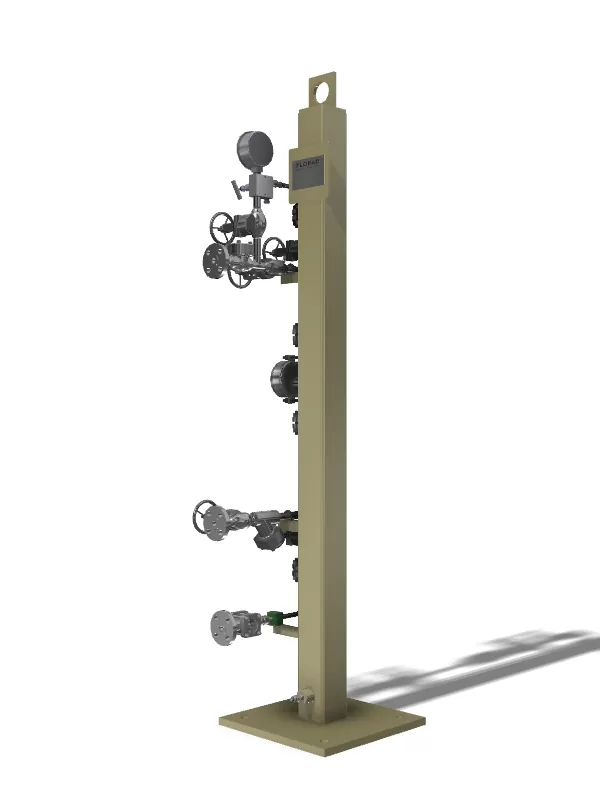

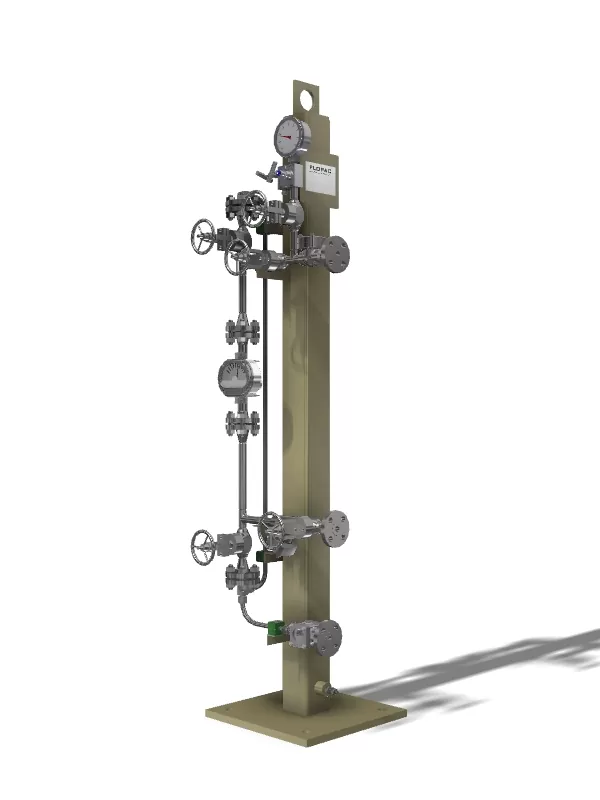

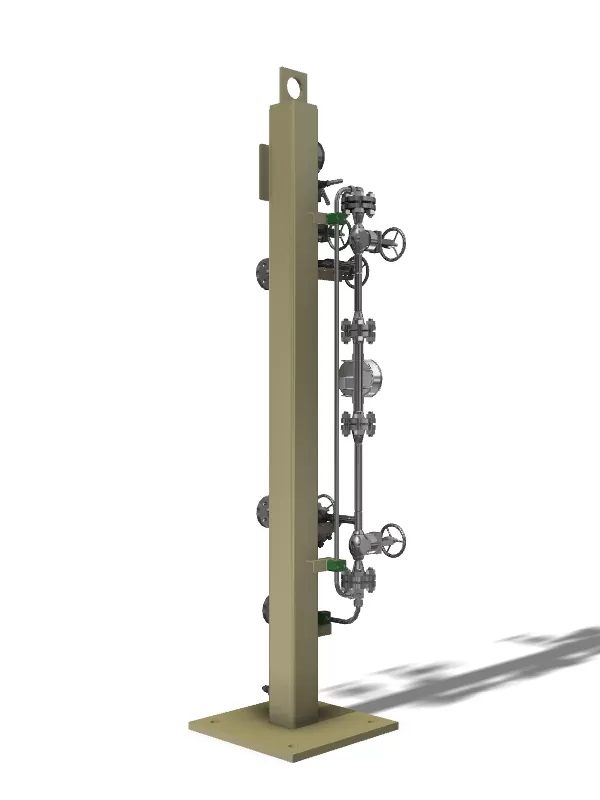

SPX-325 Configuration

Main components

9

One piping assembly

All welded – stainless steel 316L construction as appropriate.

9

Appendages

A block valve, y-type strainer, flow control and non-return valve as appropriate;

9

One temperature gauge

Make Badotherm, industrial quality 1% accuracy, dial 100mm, made from SS316/SS304. Provided with a SS316 instrument valve. Other makes/types and ranges on request.

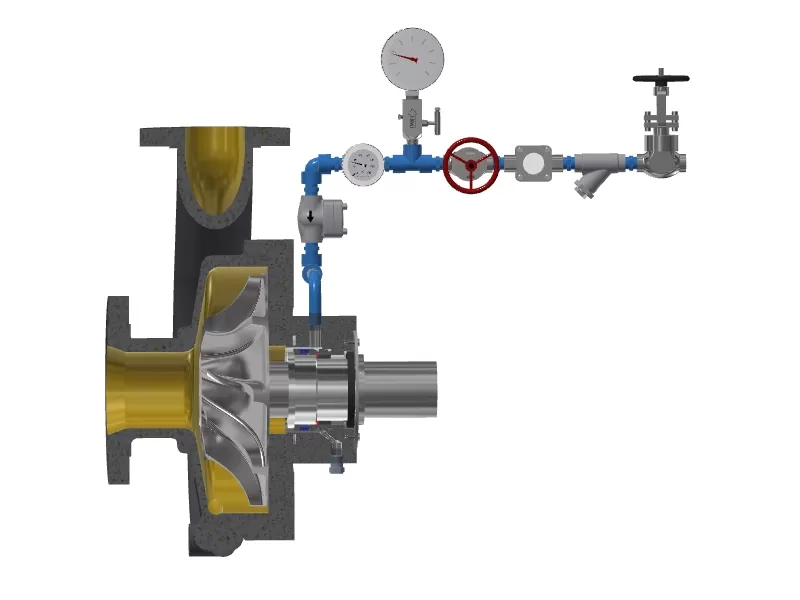

API-682-seal-support-system-plan-32-process-instrumentation-diagram-mechanical-seal-spx-32

Options

9

Alternative material selections for specific services like HF and H2S (NACE) services

9

These units can be tailored to all your specific demands.

9

The use of Smart pressure transmitters instead of switches for alarm/control functions.

9

High pressure designs (ANSI 600# / 1500#) for static designs up to 200 barg.

9

Additional pressure-, temperature- or flow instruments to enhance monitoring facilities.

9

The addition of a temperature gauge, make Badotherm, skin type TG18 -/-20/+120°C, dial 100mm, made from SS316/SS304. Other makes/types and ranges on request.
