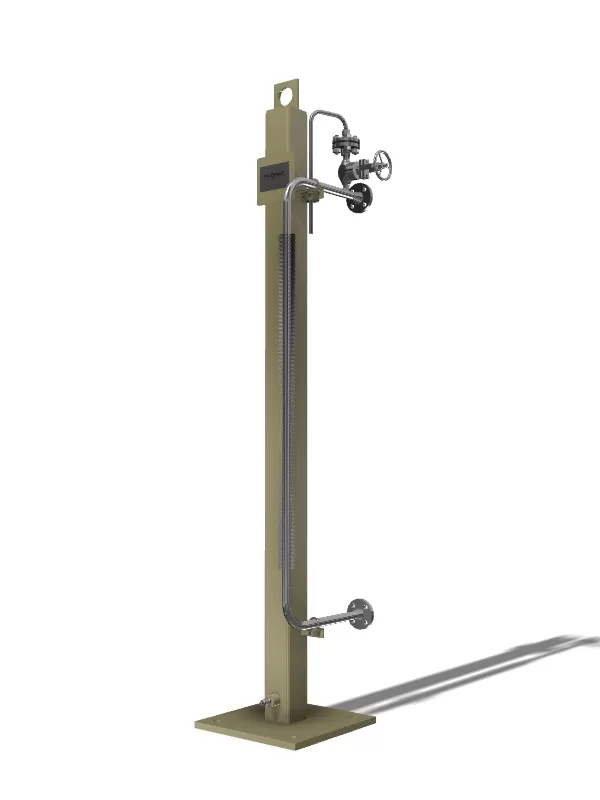

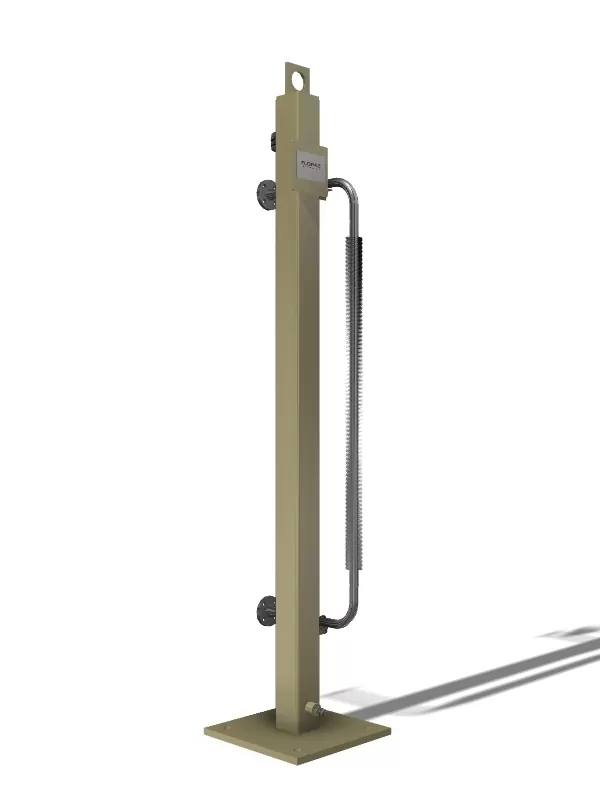

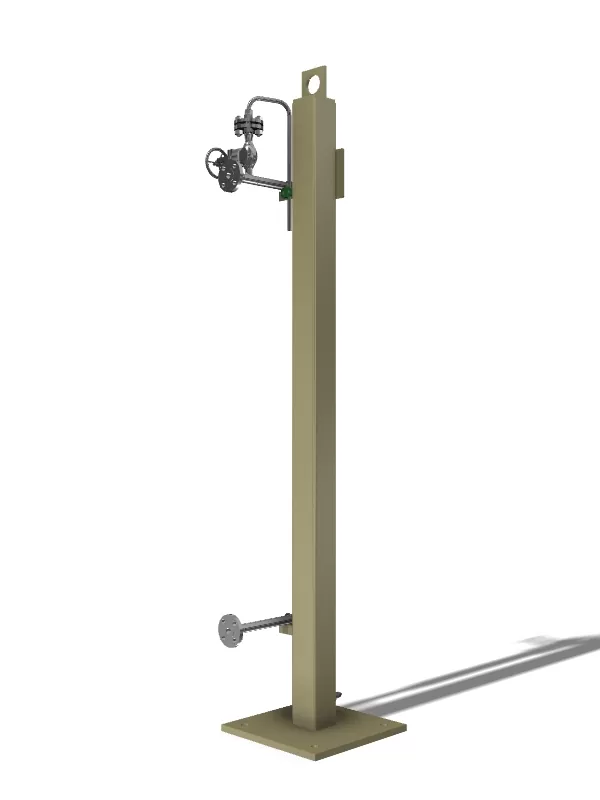

Mechanical seal system SPX-230

A complete and fully packaged Plan 23 system for arrangement 1 wet single seals (or the wet inner seal of an arrangement 2 unpressurized dual seal) in accordance with API 682 or ISO 21049 latest edition. Including support.

Standard configuration

Design ASME VIII, div. 1/not stamped and/or the European legislation (CE) such as PED 2014/68/EU and the ATEX 114 / 2014/34/EU – Zone 2 II/A T1-T3.
Suitable for general oil/water service – Non-hazardous.

Design 40 barg @ -15/+90°C / ANSI 300#-sch.40s.
Wetted parts AISI 316(L) / with SS 316Ti full contact laser-welded fins. SS304 studbolts.

To- and from seal connections ANSI 3/4″ 300# RF smf,
Vent and drain connections ANSI 1/2″ 300# RF smf.

Engineering units: SI units, Bar/°C.
NDE: Visual-/hydrostatic and leaktesting.
Surface preparation: Flopac std 3 layer epoxy system.

For heat loads up to 1.5 KW.



Available at request:

9

Designs for higher heat loads

9

High pressure designs (ANSI 600# / 1500#) for static designs up to 200 barg.

9

High temperature designs

9

Extended NDE packages to include inspections such as X-ray, LPE and P(A)MI.

9

Refer to the section ‘options’ below.

SPX-230 Configuration

Main components

9

One heat exchanger

As appropriate, refer to the section coolers.

9

Appendages

Vent- and drain valves as appropriate; API 602 forged gate type.

9

One temperature gauge

Make Badotherm, skin type TG18 -/-20/+120°C, dial 100mm, made from SS316/SS304. Other makes/types and ranges on request.

API-682-seal-support-system-plan-23-process-instrumentation-diagram-mechanical-seal-spx-23

Options

9

lternative material selections for specific services like HF and H2S (NACE) services

9

The addition of Flopac refill / make-up units and quick connectors to accommodate these units.

9

These units can be tailored to all your specific demands.

9

The use of Smart pressure transmitters instead of switches for alarm/control functions.

9

High pressure designs (ANSI 600# / 1500#) for static designs up to 200 barg.

9

Additional pressure-, temperature- or flow instruments to enhance monitoring facilities.

9

The addition of a temperature gauge, make Badotherm, skin type TG18 -/-20/+120°C, dial 100mm, made from SS316/SS304. Other makes/types and ranges on request.
